| ltems | Standard | |
| Operating temperature range | -40℃~+90℃. | |
|
Electrical performance |
Rating | 50mA Max.12V DC |
| Insulation resistance | ＞100MΩ | |
| Dielectric strength | 250VAC/min | |
| Contact resistance | ≤100mΩ | |
| Durability | Lifetime | 10,000 Cycles |
|
Mechanical performance |
Operating force | 180±50gf |
| Travel | 1.5±0.25mm | |

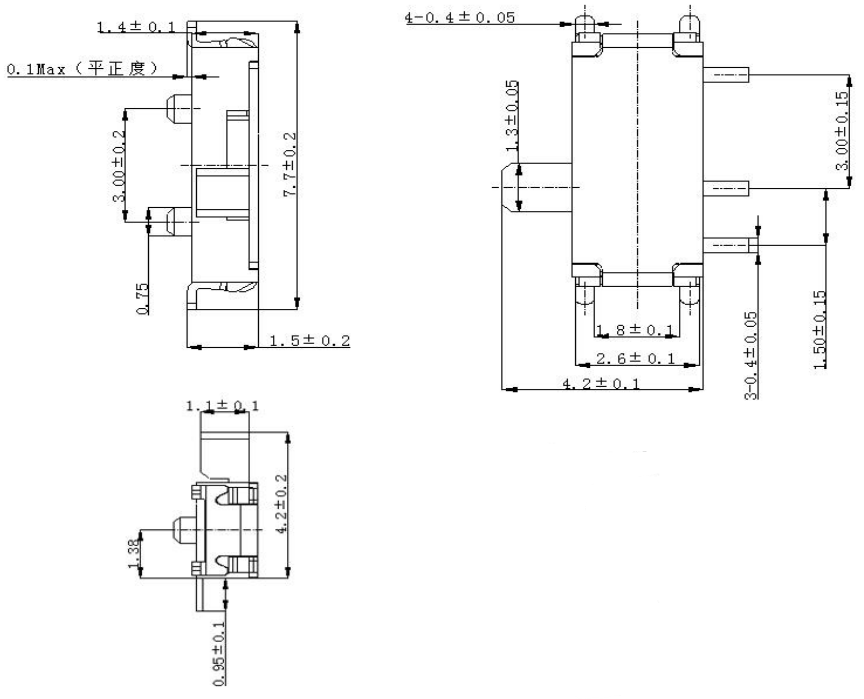

| Proudcts | Dimensions | Circuit Diagram |
| Pad Layout | ||
 |
 |
 |
