| ltems | Standard | |
| Operating temperature range | -40℃ to +90℃ | |
|
Electrical performance |
Rating | 50mA.,16V DC |
| Insulation resistance | 100MΩ min.100V DC | |
| Dielectric strength | 250V AC for 1 min. | |
| Contact resistance | 500mΩ max. | |
| Durability | Lifetime | C:100,000 Cycles |
|
Mechanical performance |
Operating force | 400±80gf |
| Travel | 0.20±0.1mm | |

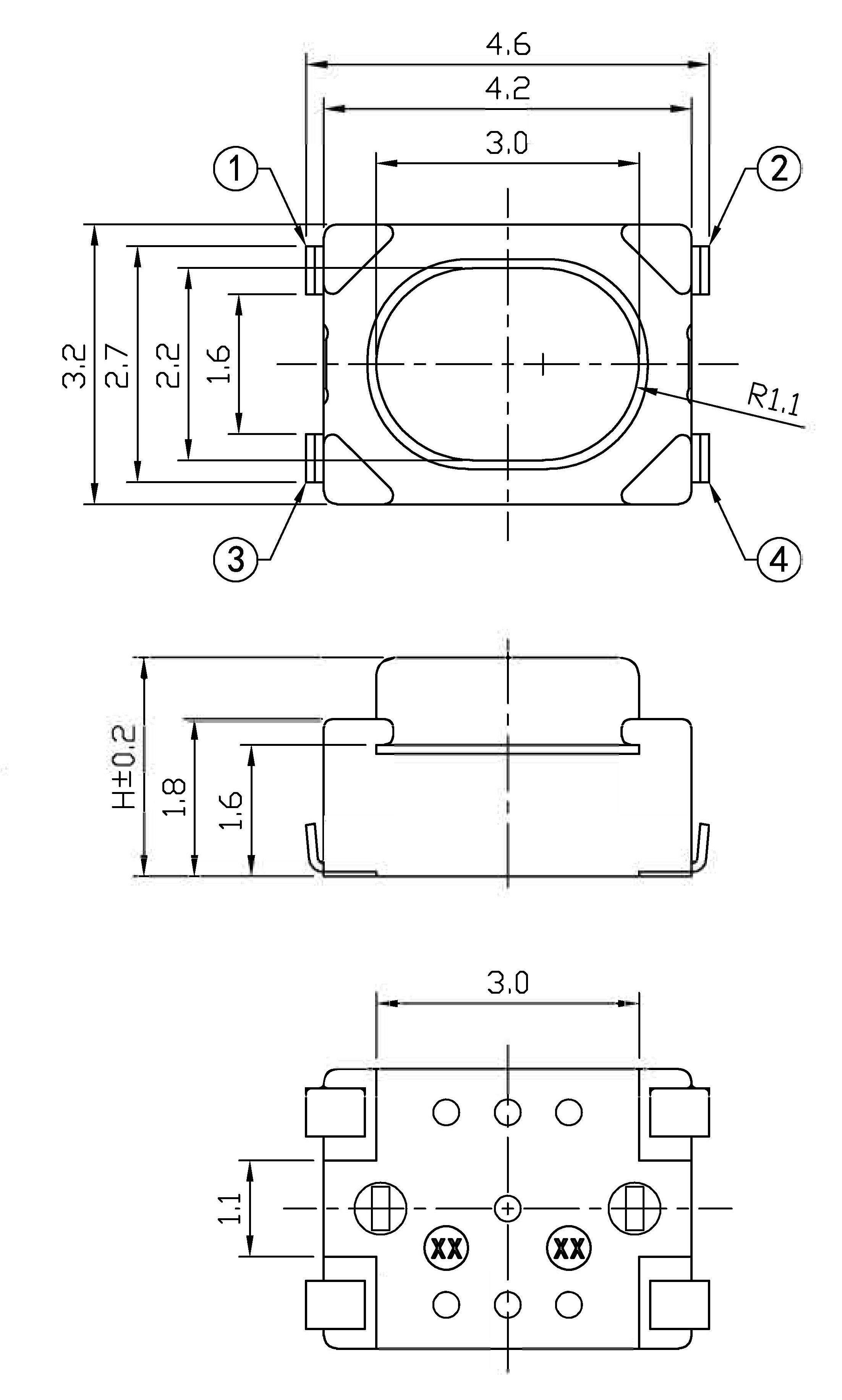

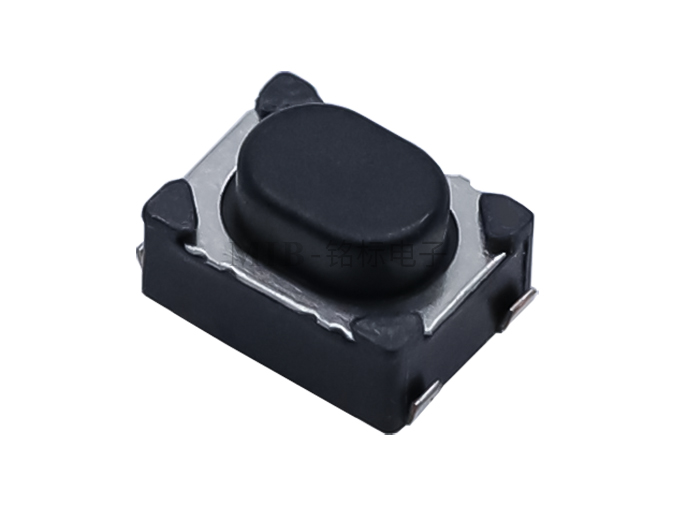

| Proudcts | Dimensions | Circuit Diagram |

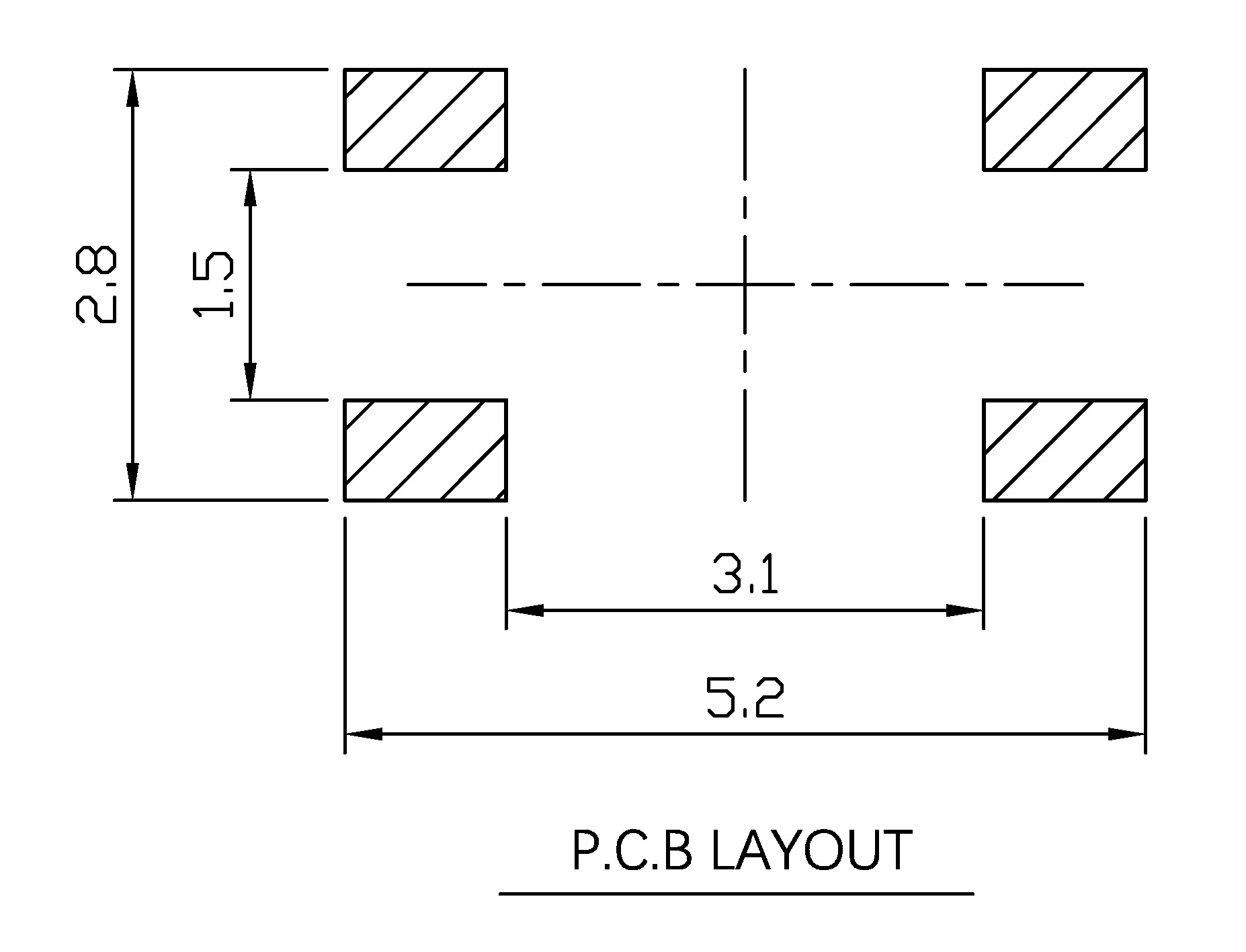

| Pad Layout | ||
 |
 |
 |
