| ltems | Standard | |
| Ambient Temper. Used | -25℃ to +85℃ | |
|
Electrical performance |
Rating | 3（1）A 125/250VAC |
| Insulation resistance | 50MΩ min.500V DC | |
| Withstand Voltage | AC500V 1min. | |
| Contact resistance | 100mΩ max. | |
|
Mechanical performance |
Operating force | 60gf MAX |
| Durability | Electrical Life | 100,00 Cycles |
| Mechanical Life | 1000,000 Cycles | |

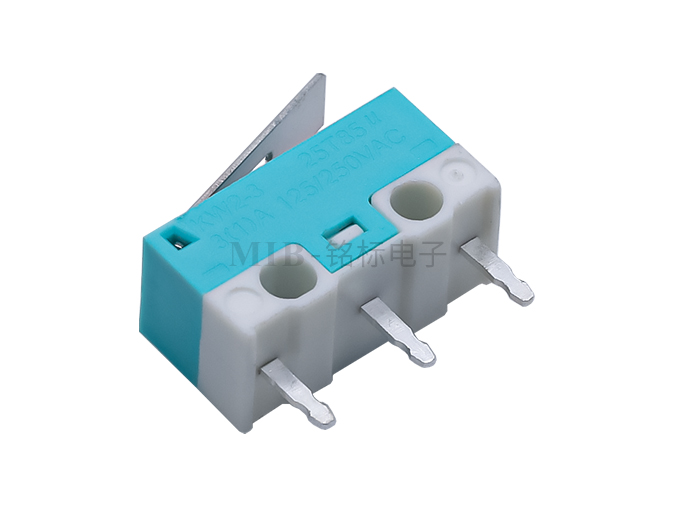

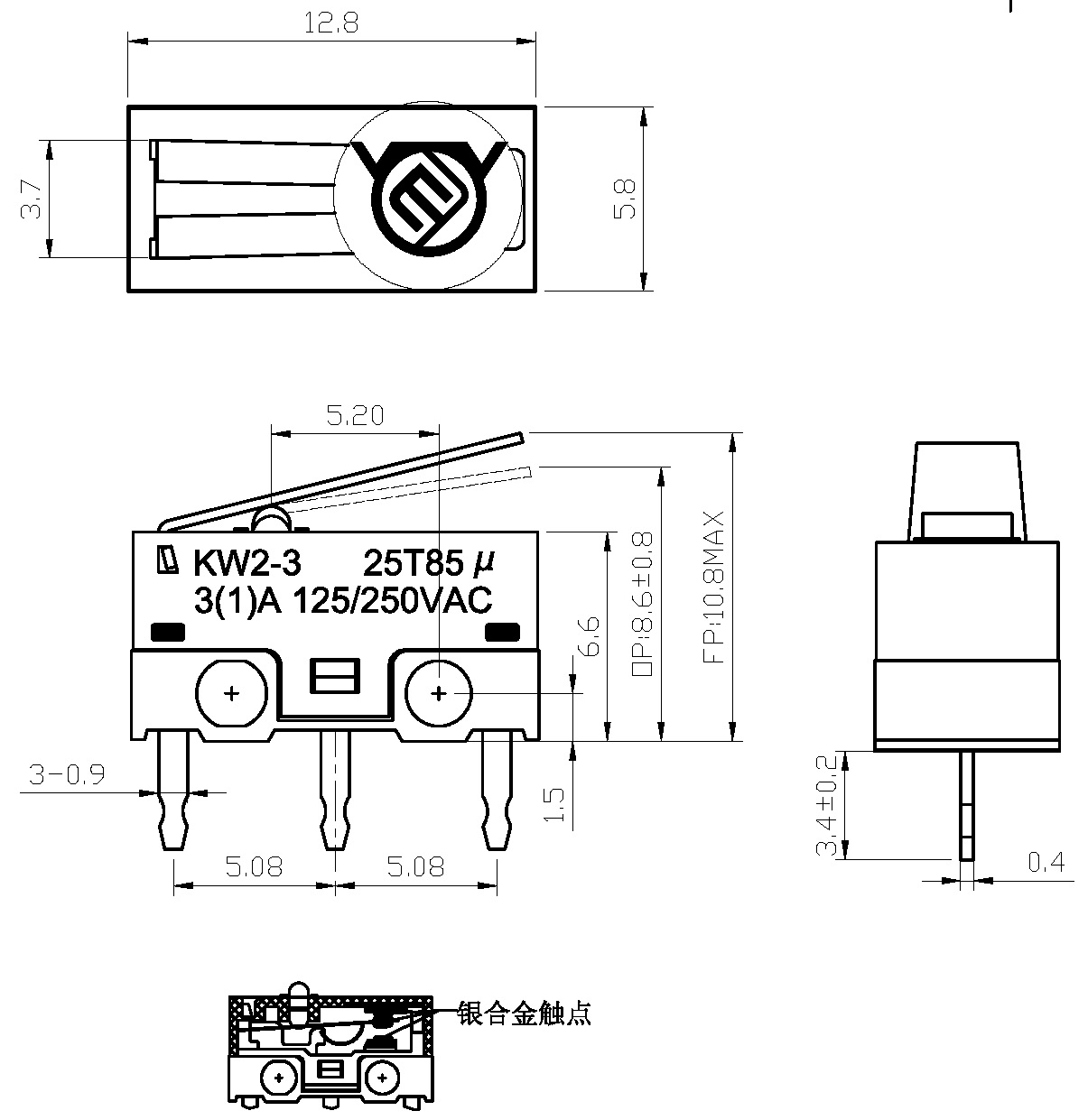

| Proudcts | Dimensions | Circuit Diagram |
| Pad Layout | ||
 |
 |
 |
